HS-Pro
Large format table laser cutting machine
Application Area
- ·Construction machinery
- ·Shipbuilding
- ·Rail traffic
- ·Aerospace
- ·Mining machinery
- ·Steel tower

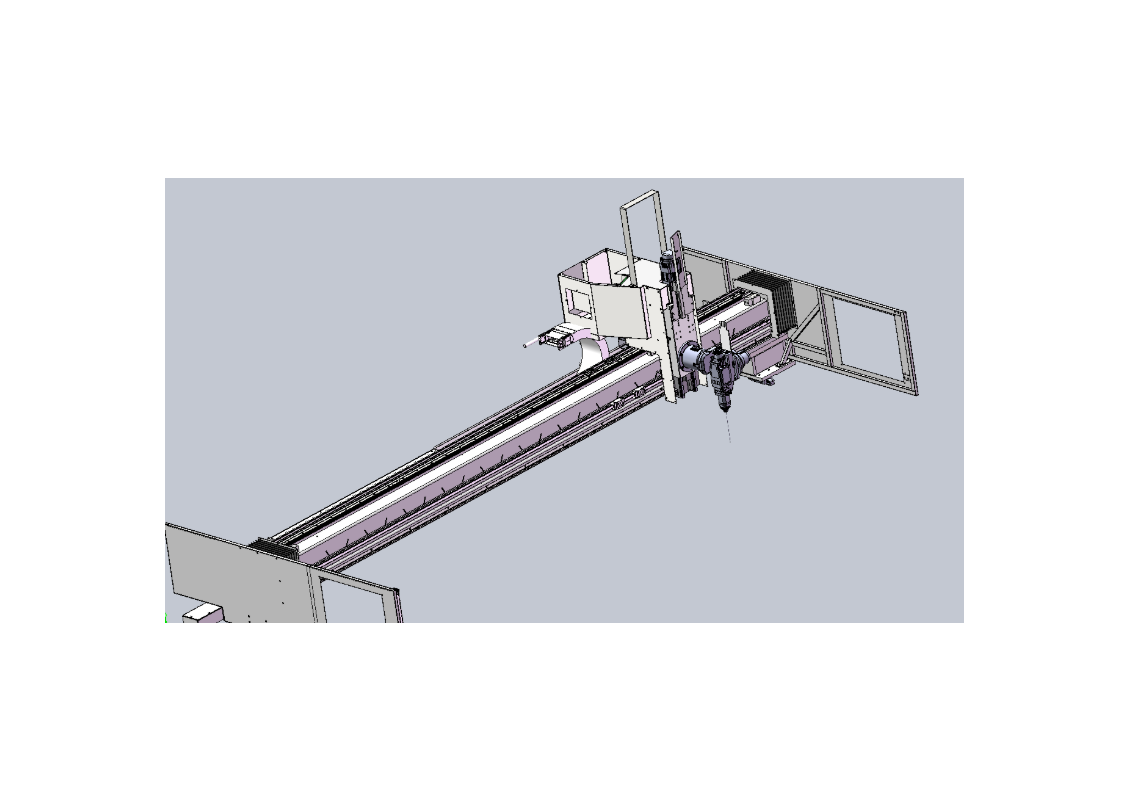

Lightweight beam, efficient work
Beam lightweight design, can be customized format;
The machine can obtain higher acceleration and speed, the maximum acceleration of 1G;
Maximum speed of single axis 80m/min;
Segmented module workbench
Independently developed segmented module workbench structure, easy for customers to easily disassemble, the length can be extended, customized according to demand
Blowing dust removal structure
Follow-up dust removal design, more comfortable working environment;
It can be more environmentally friendly, and has an innovative effect on the use environment and equipment life.
High-end bus numerical control system
Multi-plate edging, pressure DA correction;
Punch slag removal, dual drive torque protection;
Intelligent vibration control, new algorithm, intelligent path optimization;
Intelligent vibration suppression external device monitoring and compensation bus data transmission corner anti-burn lightning perforation;
Intelligent cutting head
High-end laser special cutting head, focus closed-loop control, automatic alignment, intelligent perforation;
Automatic back cutting, air pressure monitoring, lens temperature monitoring, astigmatism monitoring;
Anti-collision, anti-explosion and other intelligent technologies;
Make cutting efficient, stable, safe and intelligent;
Groove cutting function: (optional)
It can realize 0-45° groove cutting, and can process V-type, X-type, Y-type, K-type and other types of groove.
Technical Parameter
| Laser cutting machine | HS-Pro | |
| Machine stroke(mm) | Xaxis | 2550～5050 |
| Yaxis | 14050～30050 | |
| Zaxis | 130～310 | |
| Maximum linkage positioning speed(m/min) | 80 | |
| Maximum acceleration | 1G | |
| Positioning accuracy(mm/m) | ±0.05 | |
| Repeated positioning accuracy(mm) | 0.03 | |
| Laser power（W） | 6000～160000 | |
Bevelling device parameters
| Swing Angle | A axis:-46°～50°，B axis:±50° |
| Single axis maximum velocity | 37.5r/min（60r/min max） |
| Maximum uniaxial acceleration | 39.2 rad/s²（68rad/s²max） |
| Positioning accuracy | ±0.02mm |
| Repeated positioning accuracy | ±0.01mm |
*The appearance, parameters, performance description, and comparative data of the products displayed on this page are for reference only, and the actual product shall prevail.
Application Industry
-
Construction machinery
-
Shipbuilding
-
Rail traffic
-
Aerospace
-
Mining machinery
-
Steel tower
