HSLW-α

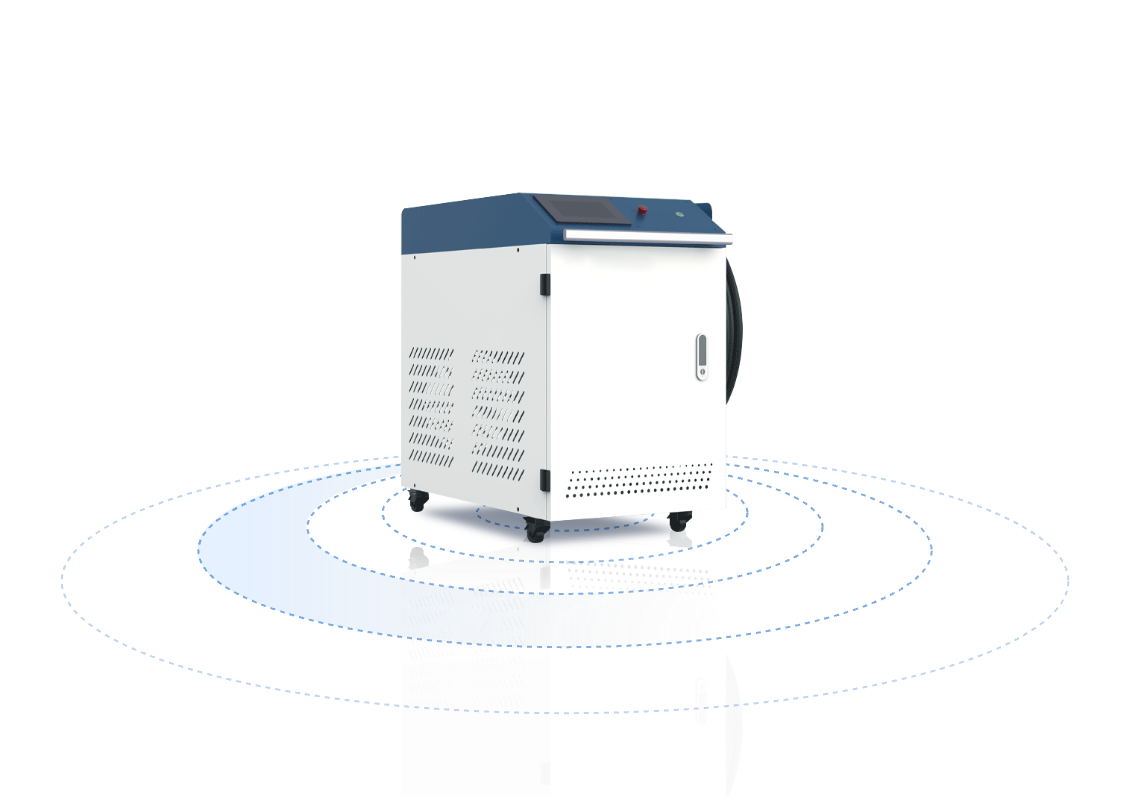

Water cooled handheld laser welding machine
Application Area
- ·Medical device
- ·Elevator manufacturing
- ·Traffic facilities
- ·metalwork
- ·Sheet metal working
- ·Automobile manufacturing
(3-in-1) Handheld laser welding head
The welded head weighs only 0.7kg;
Multi-point temperature measurement, real-time monitoring;
Dustproof, anti-falling, anti-interference;
Efficient and convenient: focusing mirror, protective mirror drawer, easy to replace; The collimator is integrated with QBH for easy field replacement
Three-in-one function: welding, cutting, cleaning
Handheld welding special operating system
The system interface is simple, with a variety of welding processes, suitable for different thickness and material welding materials.
Laser, water cooler and welding head real-time monitoring, abnormal alarm.
Free switching of welding, cutting and cleaning functions.
Water cooler
Temperature control accuracy of ±1℃, double temperature design, can meet the laser body and welding head cooling.
There are two temperature control modes, constant temperature mode and intelligent temperature control mode, to meet the cooling needs of laser welding machines in different environments.
Intelligent wire feeder
Single wire feeder, double wire feeder, three wire feeder can be selected independently;
Support continuous wire feeding, pulse wire feeding mode;
Wire feed speed is adjustable from 15 to 600cm/min
Technical Parameter
machine model | HSLW-α |
| Laser power | 1500W；200W；3000W |
| Laser wavelength | 1068±5nm |
| Working mode | 24 hours/day continuous work |
| Spot adjustable range | 0---6mm |
| Voltage requirement | 220V；380V |
| Fiber length | 10m; 15m (optional) |
| Cooling mode | water-cooling |
| Water temperature requirement | 5--45℃ |
| Air humidity requirement | 10--90% |
| Configurable laser | Reek, Chuangxin, Spurs, Caplin, light square and so on |
*The appearance, parameters, performance description, and comparative data of the products displayed on this page are for reference only, and the actual product shall prevail.
Application Industry
-
Medical device
-
Elevator manufacturing
-
Traffic facilities
-
metalwork
-
Sheet metal working
-
Automobile manufacturing
Product Video
